SPECIFICATIONS:

TYPEUNITQMT09C05
Min. Sound Output at 10cmdB85
Rated VoltageV0-p5
Operating VoltageV0-p3～7
Resonant FrequencyHz2731
Max. Current ConsumptionmA120
Coil ResistanceΩ16±3
Operating Temperature℃-20～+70
StorageTemperature℃-30～+80
Weightg0.8

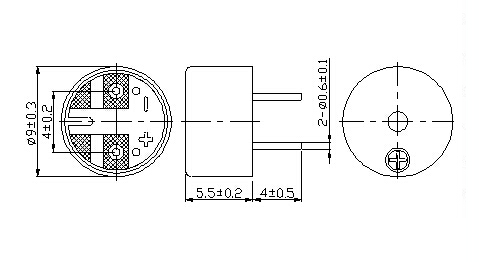

DIMENSIONS (Unit: mm):

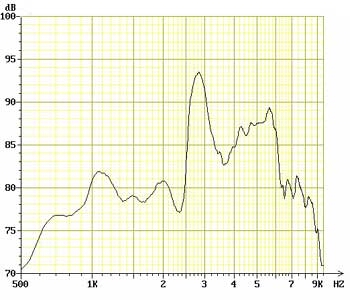

FREQUENCY RESPONSE:
