A. SCOPE

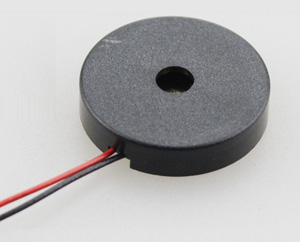

This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 4000 | square wave |
| 2 | Operating Voltage | Vp-p | 1 ~25 | |
| 3 | Rated Voltage | Vp-p | 9 | |
| 4 | Current Consumption | mA | MAX. 5 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Electrostatic Capacity | pF | 25000±30% | at 100Hz 1V |
| 7 | Housing Material | ABS ( Black ) |
C. APPEARANCE DRAWING
Unit :mm Tol: ±0.3
